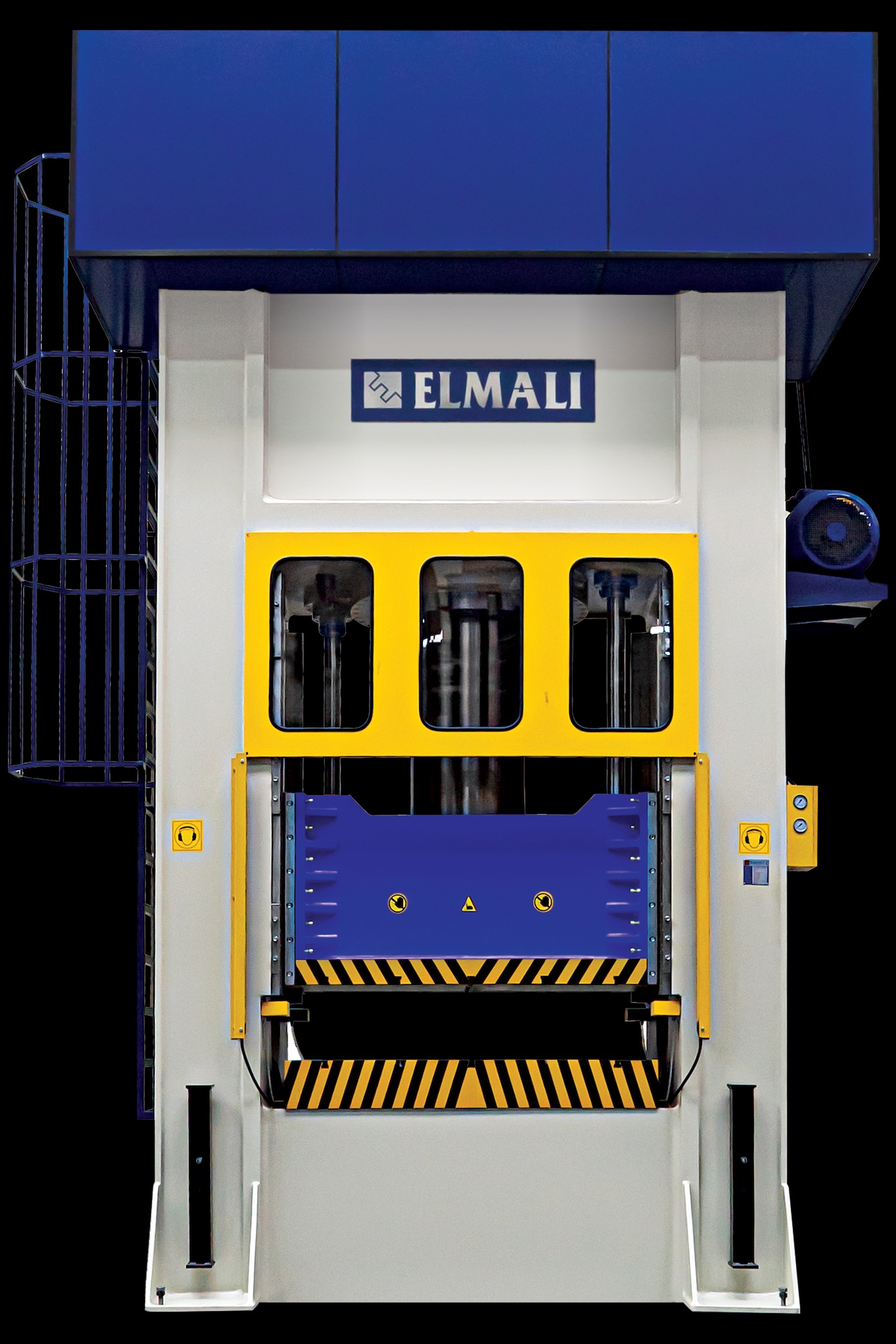

High-precision hydraulic deep-drawing presses engineered for sheet-metal forming, high rigidity, and controlled forming speeds.
Elmali deep-drawing presses are engineered for demanding sheet-metal forming applications requiring precise force control, high rigidity, and stable forming speeds. Each press is custom-built according to customer specifications, ensuring optimal performance for your tooling, production volume, and automation level.
Pressing force, ram stroke, and speed profiles can be individually configured and controlled with modern PLC-based systems. Our welded steel frames are heat-treated and CNC-machined to guarantee long-term accuracy and structural stability.
The presses are made to customer specifications. Our customers' wishes are the benchmark. For this reason, each unit is individually optimized and manufactured for its purpose.
We would be happy to discuss with you personally what properties “your” thermoforming press should have.
When it comes to sheet metal forming, we manufacture hydraulic deep-drawing presses due to their versatility. Pressing forces, ram stroke and speeds can be varied and precisely controlled. The drive design and the use of modern control technology were developed.

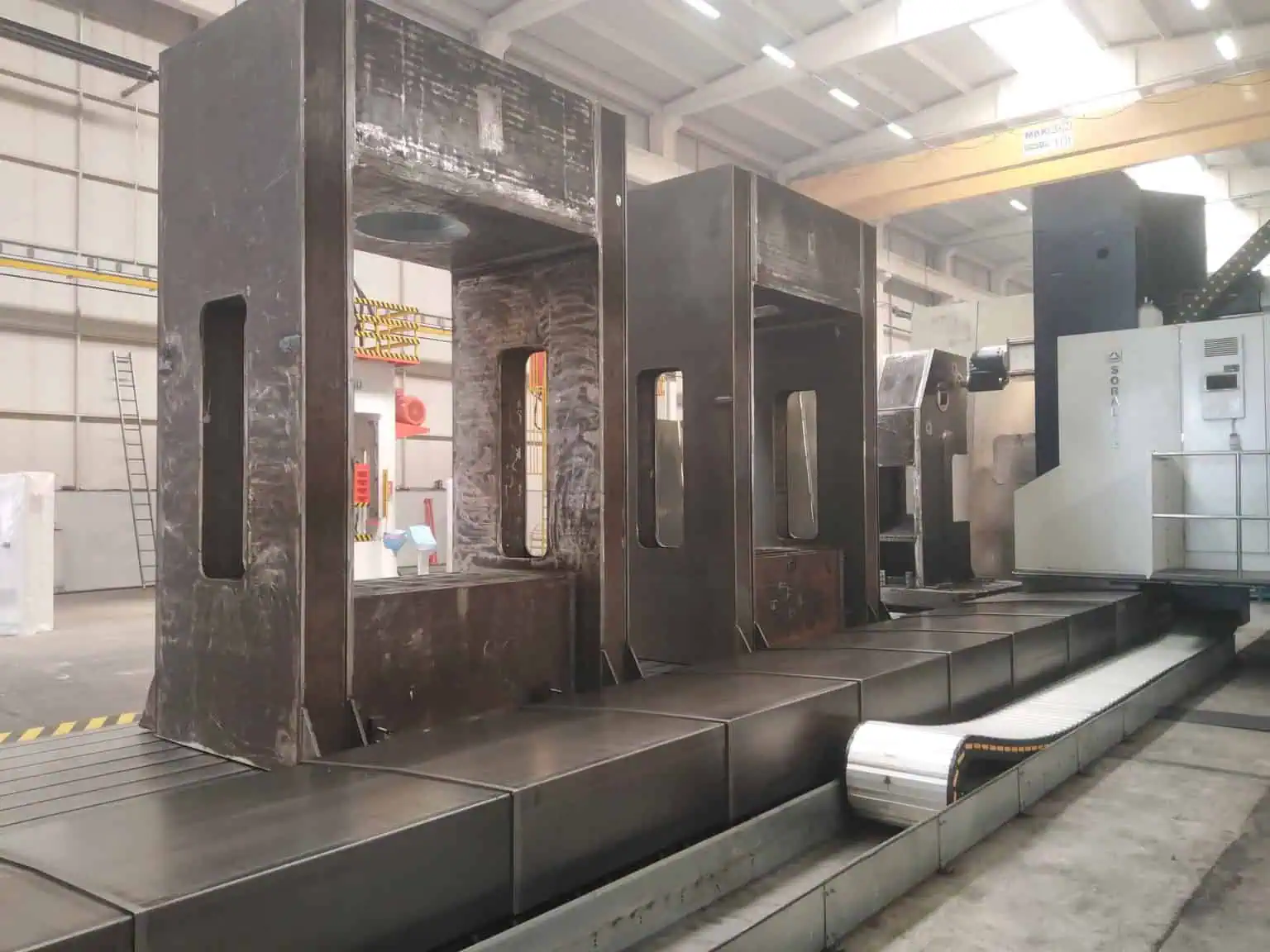

Depending on the installation height, table surface and ram stroke, our press frames consist of one or more parts. It is the welded steel structure. After welding, it is heat treated and then milled on the CNC machining center.
We would be happy to discuss with you personally what properties “your” thermoforming press should have.
CNC Working Center
The presses are made to customer specifications. Our customers' wishes are the benchmark. For this reason, each unit is individually optimized and manufactured for its purpose.
We would be happy to discuss with you personally what properties “your” thermoforming press should have.
When it comes to sheet metal forming, we manufacture hydraulic deep-drawing presses due to their versatility. Pressing forces, ram stroke and speeds can be varied and precisely controlled. The drive design and the use of modern control technology were developed.

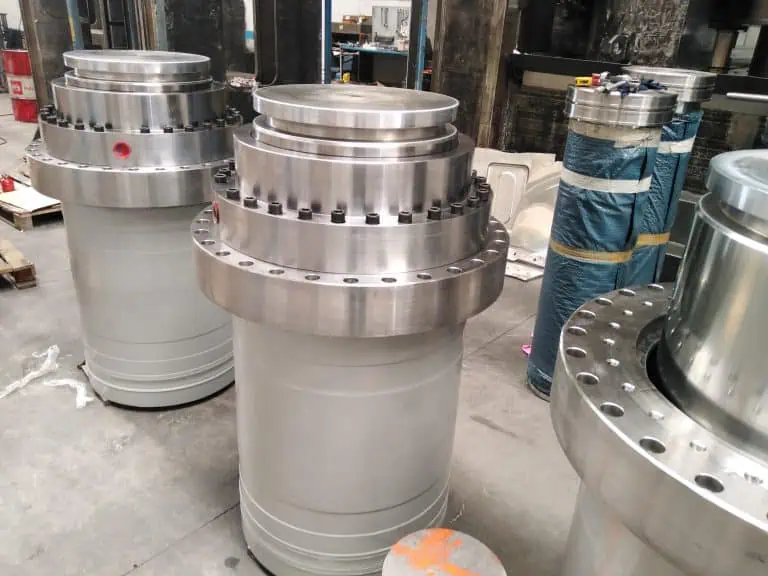

The cylinders are built single or double acting. Depending on the requirements of the press, the cylinders are adapted to the press. The cylinders are forged and the inner bore ground.
The filling valve is located directly on the cylinder base and enables short filling and emptying times for high downward and upward speeds of the piston.
Hydraulic cylinder
| Pressing Force | 100 – 2000 tons |
|---|---|
| Stroke Length | 200 – 1200 mm |
| Daylight | 300 – 1800 mm |
| Frame Type | Welded steel, heat‑treated |
| Guidance | 6‑ or 8‑point bronze‑guided |
| Control System | Siemens / Beckhoff PLC + HMI |
Every deep‑drawing press is engineered to your exact production requirements. Tell us your application and we’ll design the optimal solution.
